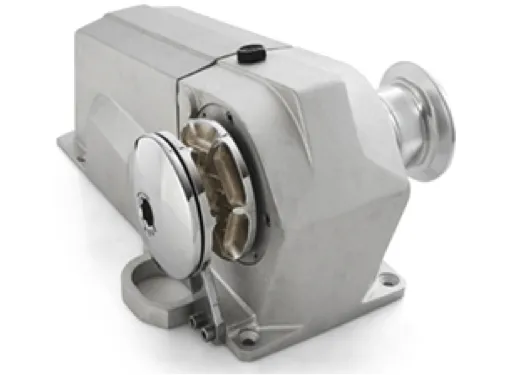

The Devon horizontal windlass is available with a 1500 watt motor in 12/24 volt. Reversing motor allowing anchor to be released electrically as well as manually. To release anchor manually loosen the gypsy clutch cover with handle, which in turns releases the clutch. The speed of descent is controlled by the handle. Rope Drum can be used independently of gypsy. Windlass made in anodized aluminium alloy, with chromed gypsy cover. Supplied with handle and control box.

Specification

• Motor: 1500W
• Voltage: 12 or 24V
• Safe Work Load Max: 12V 450kg, 24V 480kg
• Work Load Lifting: 12V 150kg, 24V 160kg
• Chain Speed Recovery: 25 mt/min
• Amperage: 12V 130A, 24V 70A

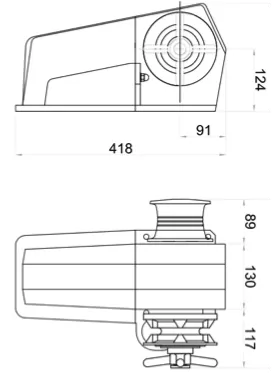

• Dimensions: See attached image
• Weight: 29.8kg
• Horizontal windlass
• Power 1500W
• Chain: 8/10mm
• Anodised marine aluminium case
• Chain counter sensor as standard
• Heavy duty rated IP66 electric motor
• Suitable for boats up 16 metres
• Two year warranty

Models

• Devon 1500W 12V 8mm Chain
• Devon 1500W 12V 10mm Chain
• Devon 1500W 24V 8mm Chain
• Devon 1500W 24V 10mm Chain
